Migrate from Xray (Server and Datacenter)

Introduction & contents

This document provides information on the types of test information that users can import from Xray (Server and Datacenter) into TestRail, the process of exporting data from Xray, and the necessary steps for preparing and importing that data into TestRail. It also outlines what data can and cannot be imported and provides workarounds for situations where data cannot be imported into TestRail.

Features & limitations

TestRail supports importing test cases with all the supported fields, from header fields to template fields, including separated test steps and custom fields, via CSV. The table below enumerates the data supported when importing test cases via CSV, as well as the current limitations.

Supported Limitations
  • Default fields
  • Custom fields
  • Preconditions
  • Separated test steps
  • Attachments - TestRail CSV import does not support attachments

To import test cases with custom fields from Xray to TestRail, it is necessary to create matching custom fields in TestRail prior to the import process.


In this tutorial, we will guide you through how to migrate Xray tests of type Manual only.

Exporting test case data from Xray

To have complete control over the layout and format of your Xray data exports, you can use the Xray Document Generator. This feature allows you to create your own custom templates and generate documents that reflect your Jira data, primarily Xray issues, requirements, and defects.

To export test cases from Xray in a format which allows you to import them to TestRail, we'll guide you through the following steps:


Creating a new template using the Xray Document Generator

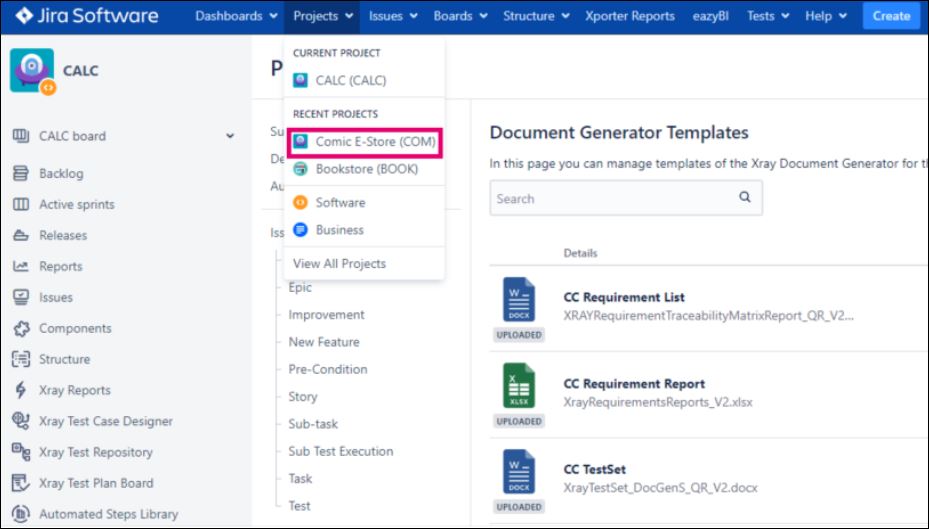

  • Navigate to the project in Jira from which you want to export the tests


  • Navigate to the Project Settings

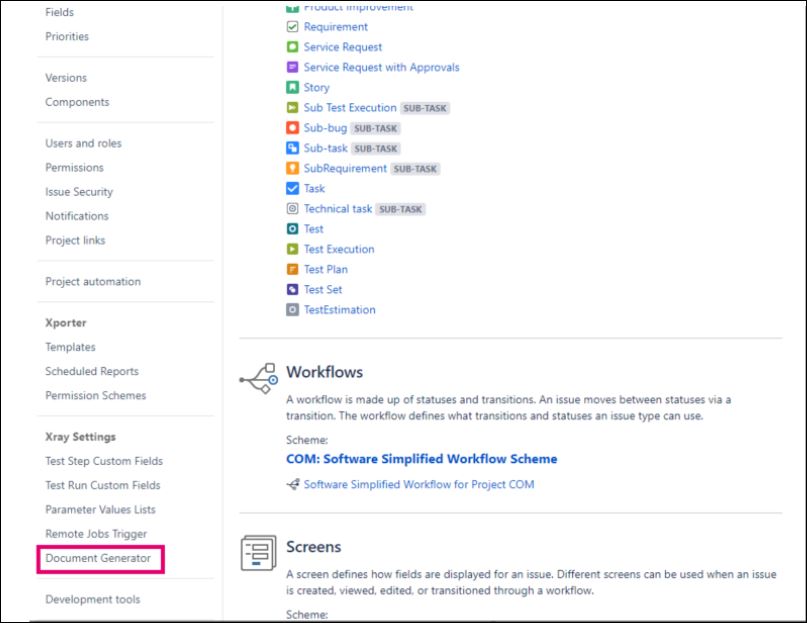

  • Click on the Document Generator link from the left navigation panel

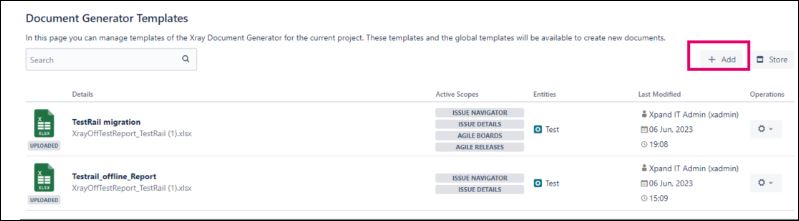

  • Click on the Add Button

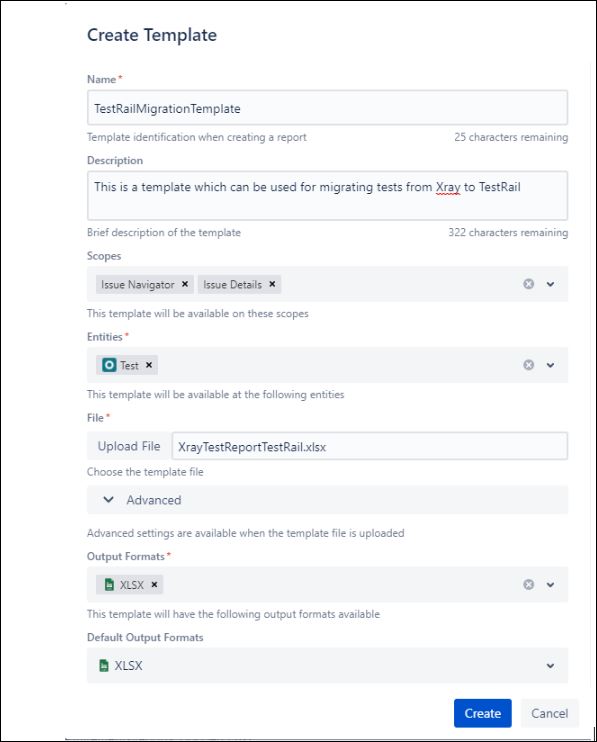

  • In the Create Template screen, provide the information below


    • Name: The name field will be used in the template store to save the template. This name is also the one that will appear in the template selection drop-down when exporting data. For this tutorial, we used TestRailMigrationTemplate.
    • Scopes: Scopes refer to the specific areas or sections within Jira where the newly created template is accessible. We need to access the template in the Issue Navigator and Issue Details.
    • Entities: These are the Jira entities for which you would like the template to be accessible. In this tutorial, we focused on Test as an entity as we are interested in exporting only the tests from Xray to TestRail.
    • Upload File: The file containing the export template configuration. To export test cases in a format compatible with TestRail, use our XrayTestReportTestRail.xlsx template file.
    • Output Formats / Default Output Formats: Once you upload the file, these fields will be automatically set to XLSX, as per the template configuration.
  • Click the Create button and the new template will be available under the Document Generator.


Exporting test cases from Xray using the new template

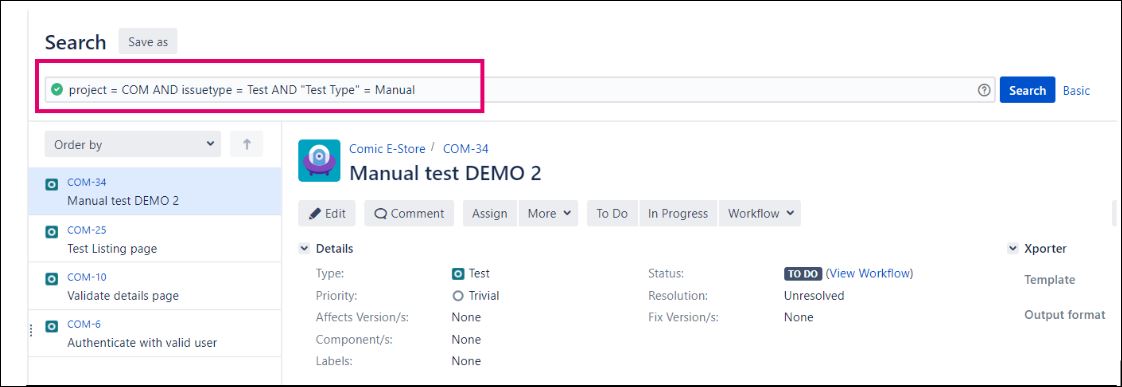

  • On the Jira issues navigator, use a filter to find the test cases you want to export. We recommend using the following criteria:
    • filter by your desired project
    • issuetype should be Test
    • Test Type must be Manual

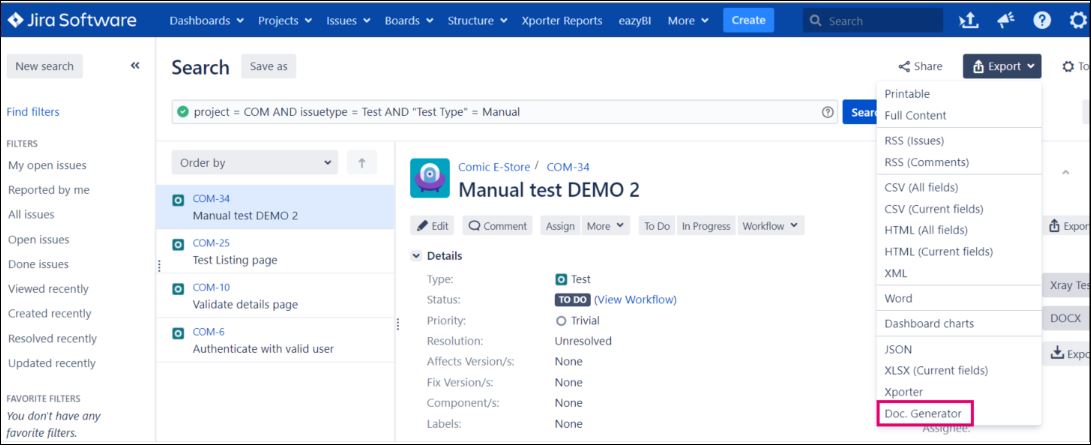

  • Click on the Export button and then select Doc. Generator

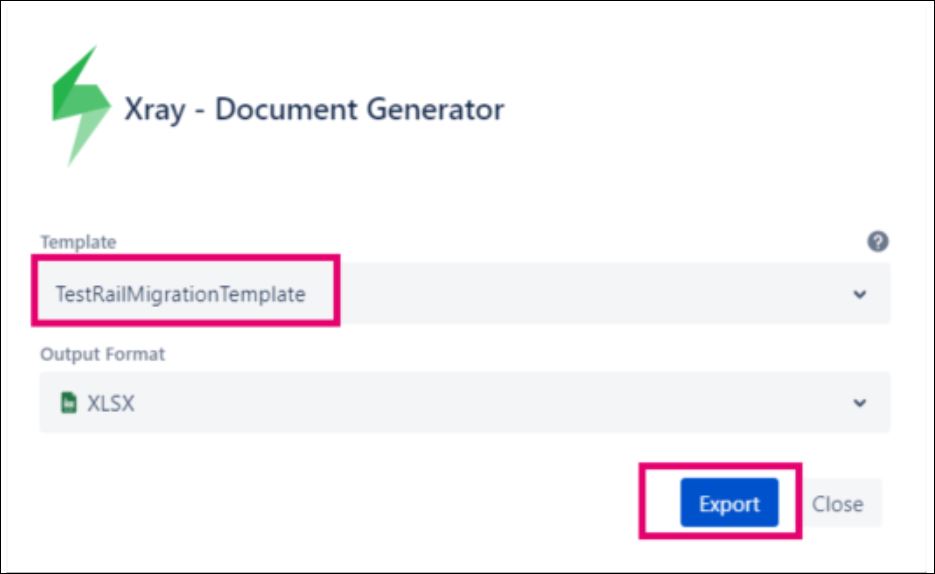

  • In the Xray - Document Generator dialog, select the TestRailMigrationReport as the Template and XLSX as an Output Format and click the Export button


  • A XLSX file similar to issues.xlsx should be generated
  • Save the XLSX file to CSV so it is compatible with the TestRail import wizzard

Importing test cases to TestRail

The common fields to all templates can be mapped to TestRail fields as per the table below. For fields that may not exist by default in TestRail, you can create a new custom field to map your data to.

Xray Excel columns TestRail fields
Summary Title
Action Steps (Step)
Data Steps (Additional Info)
Expected Result Steps (Expected Result)
Precondition Preconditions
Description CUSTOM FIELD

Importing test case data into TestRail is very straightforward. Just navigate to the project to which you want to import the test cases and follow the steps below.

  • Navigate to the Test Cases page

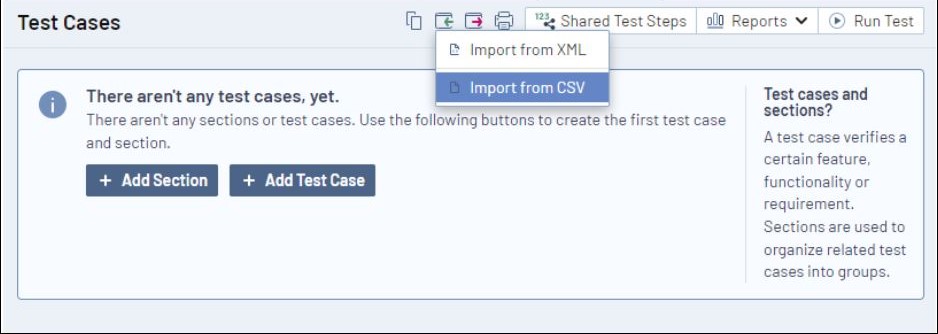

  • Click the Import Cases icon on the top of the page and select Import from CSV

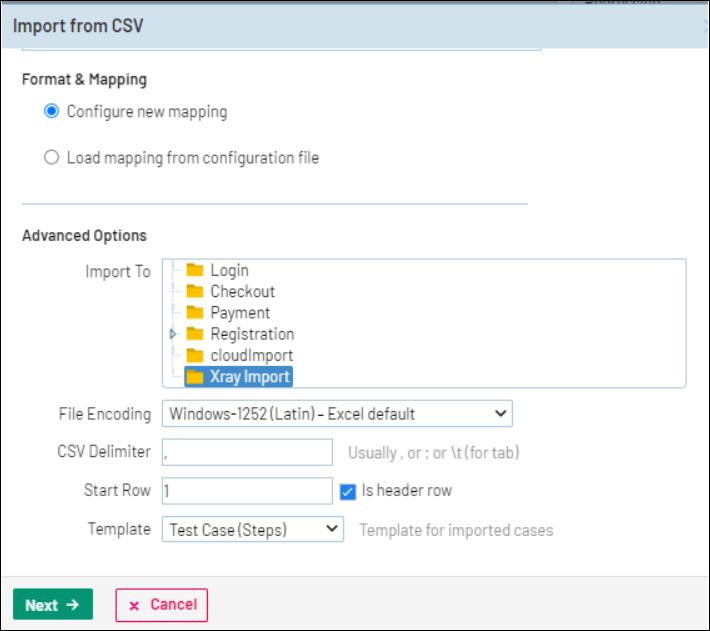

  • On the first step of the import dialog:
    • Select the CSV file you want to import
    • Select the Section you want the test cases to be imported to
    • Select the File Encoding as Windows-1252(Latin)-Excel default. This is the default file encoding used by Excel
    • Set the CSV delimiter to be a comma (or the delimiter you used when saving the file)
    • Set the Start Row to 1
    • Is header row checkbox should be checked as our Excel sheet includes a header row.
    • Set the Template to Test Case (Steps)
    • Click Next


  • On the second step of the import dialog:
    • Set the Row Layout to Test cases use multiple rows and
    • Set the Column to detect new test cases value to Summary. This means new test cases will be detected based on the different summaries available.

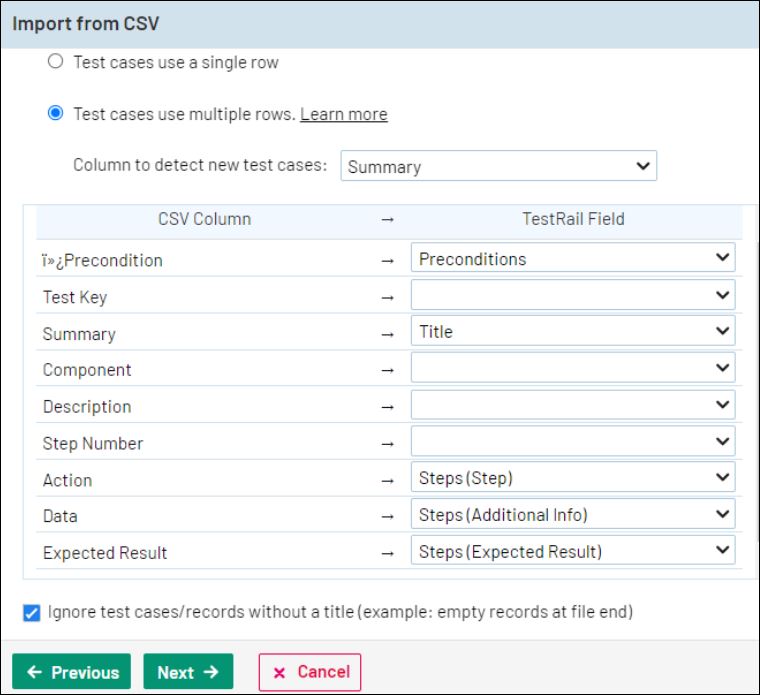

    • Map the CSV columns to TestRail fields (you can see a simple example in the image below)
    • Check the option Ignore test cases/records without a title.
    • Click Next


  • On the third step of the import dialog:

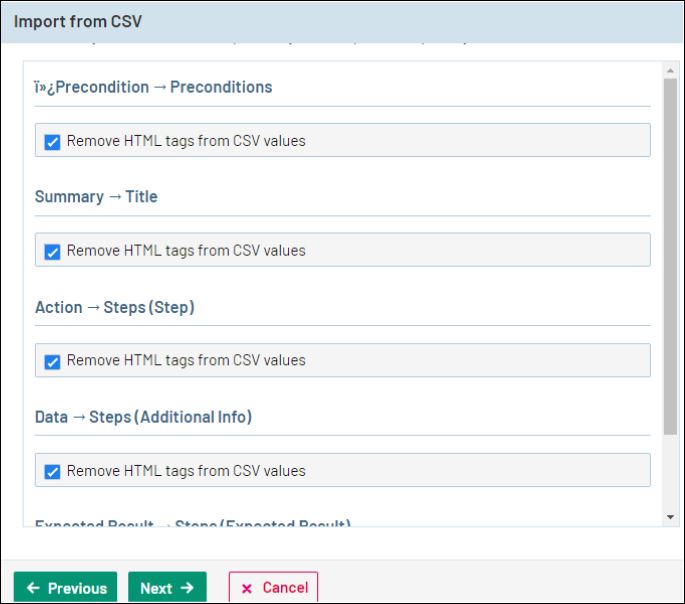

    • Select Remove HTML tags from CSV values for all fields
    • Click Next


  • On the fourth and last step of the import dialog:

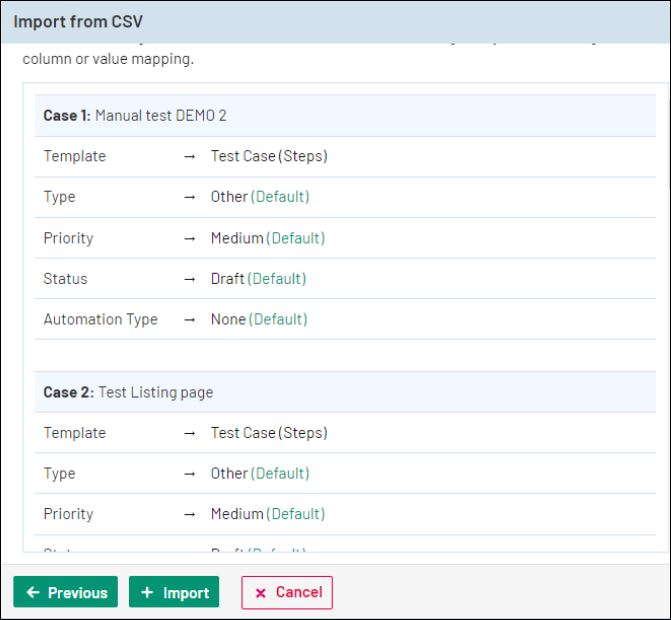

    • Confirm the information processed by TestRail is as expected
    • Click Import

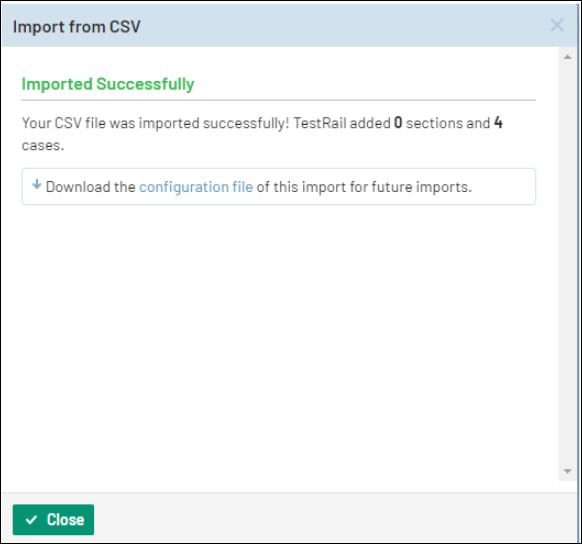

  • Once import is done you will get the confirmation dialog, as shown in the screenshot below


Viewing imported data in TestRail

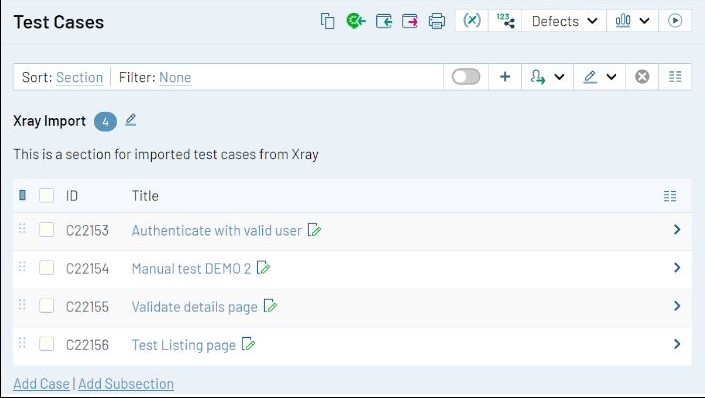

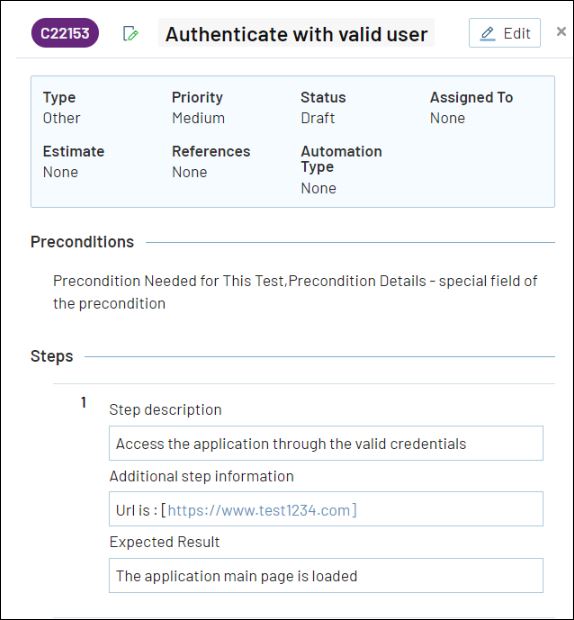

You should now see your imported test cases as per the image below.
